Eaton MTL
Eaton MTL (formerly MTL Instruments) is the world's leading manufacturer of intrinsic safety barriers, galvanic isolators, and associated field instrumentation infrastructure for hazardous area applications. MTL products are the interface between the safe area control system and the field instruments installed in Zone 0, Zone 1, and Zone 2 explosive atmospheres.
With over 40 years of innovation in explosion protection, MTL barriers and isolators are the trusted choice for HART, Foundation Fieldbus, PROFIBUS, and conventional 4-20 mA instrument loops in Oil & Gas, Petrochemical, and Chemical plant environments.
ASSET is the authorized Eaton MTL representative in Egypt, providing the complete MTL product portfolio from Zener barriers and DIN-rail isolators to smart marshalling panels and fieldbus infrastructure systems.
Visit Eaton MTL WebsiteProducts & Solutions
MTL4500 DIN-Rail Zener Barriers
Classic backplane-mounted Zener barriers for simple, reliable intrinsic safety. Available for all standard signal types — 4-20 mA, voltage, switch, solenoid, and thermocouple. DIN-rail or backplane mounting, no power supply required.

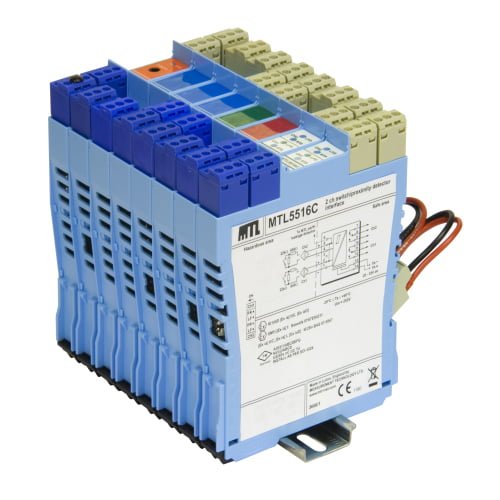

MTL5500 DIN-Rail Isolators
Galvanic isolation eliminates earth loop problems and allows multiple loops on a single cable. The MTL5500 range covers all standard signal types with HART pass-through and full galvanic isolation for maximum loop integrity.

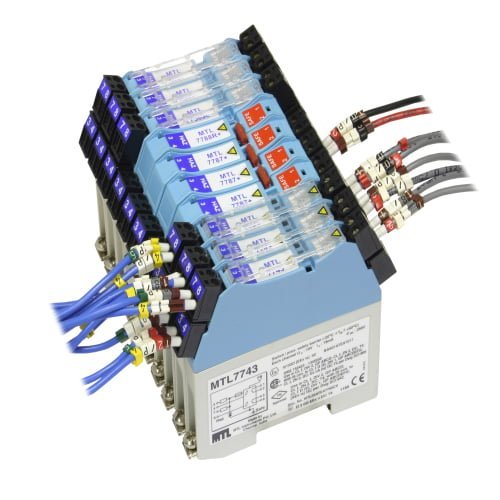

MTL7700 Compact Isolators
Ultra-slim compact isolators at only 6mm wide — maximizing density in marshalling cabinets. Full HART capability, galvanic isolation, and the same reliability as the full-width MTL range.

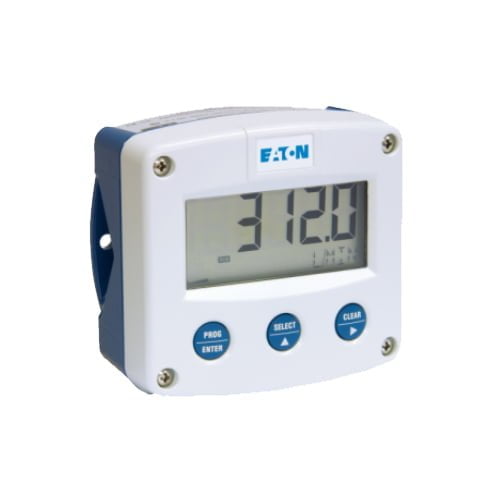

MTL660 Loop-Powered Indicators
Intrinsically safe loop-powered field indicators for Zone 1 and Zone 2. Display 4-20 mA signals as engineering-unit readings directly at the field instrument without additional power supply.

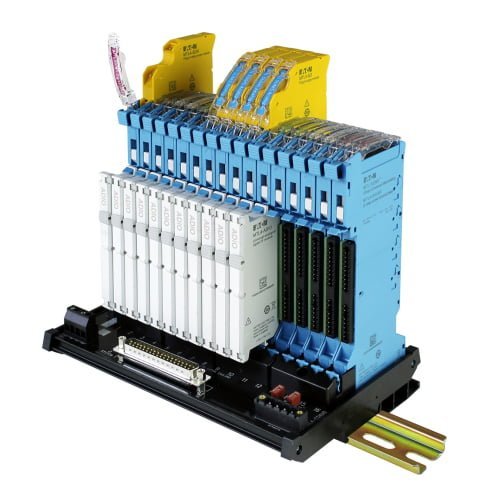

SUM5 Smart Universal Marshalling
The MTL SUM5 is a next-generation electronic marshalling system that eliminates traditional cross-wiring between field junction boxes and the control system. Individual characterization modules are assigned to I/O channels in software — cutting engineering time, cabinet footprint, and commissioning cost by up to 50%.

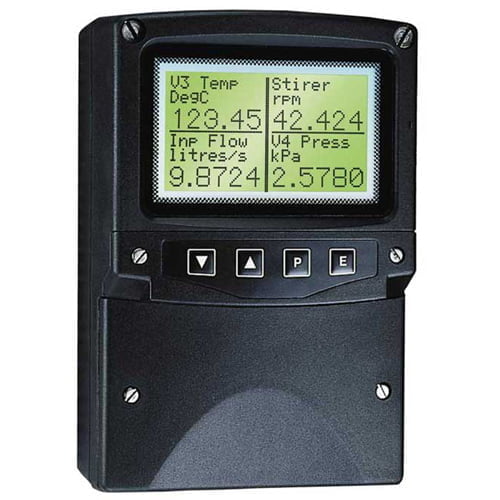

Fieldbus Infrastructure & Displays
MTL fieldbus power conditioners, segment protectors, and junction boxes for FOUNDATION Fieldbus H1 and PROFIBUS PA segments in hazardous areas. Field displays and configurators for loop characterization and HART device management.

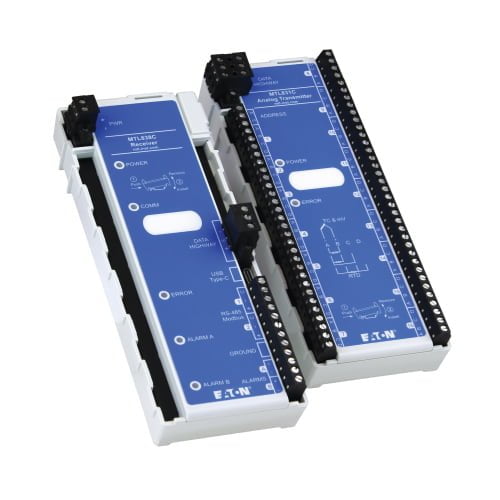

Temperature Multiplexers
MTL830C and 940 series temperature multiplexers for high-density thermocouple and RTD signal acquisition. Used for heat tracing monitoring, tank farm temperature management, and multi-point process temperature measurement.

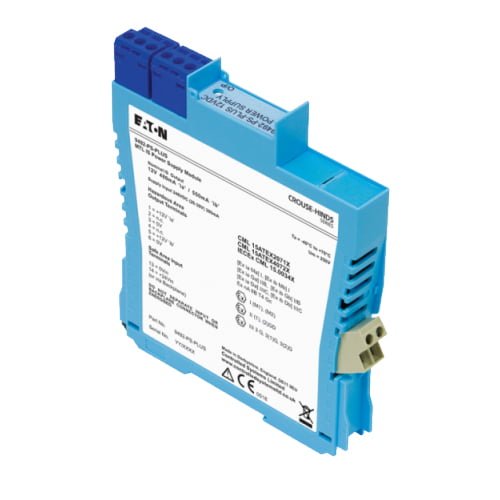

Hazardous Area Power Supplies
MTL certified power supplies for Zone 1 and Zone 2 hazardous areas. Redundant, DIN-rail mounted, with monitoring outputs for integration into plant DCS and alarm management systems.
